同步帶輪型號

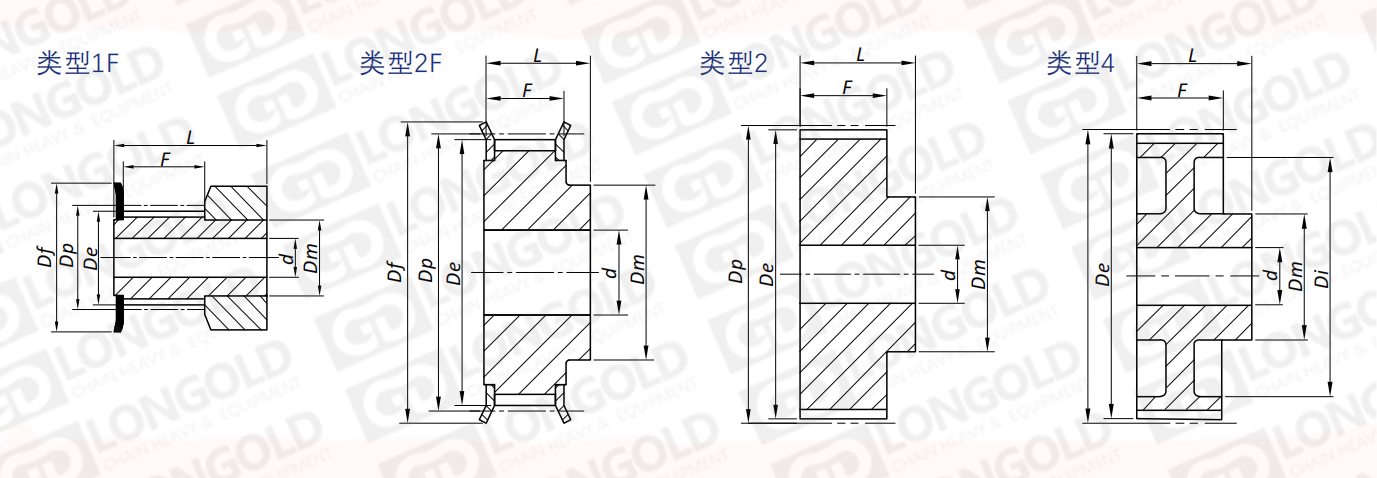

類型

齒數(shù)

外圓直徑

節(jié)距圓直徑

擋圈直徑

輪轂直徑

齒寬

總寬

孔徑

Dp

De

Df

Dm

F

L

d

Z

inch

inch

inch

inch

inch

inch

inch

3M1510T-F

1F

10

0.376

0.346

33/64

33/64

21/32

1

1/8

3M1512T-F

1F

12

0.451

0.421

19/32

19/32

21/32

1

3/16

3M1514T-F

1F

14

0.526

0.496

21/32

21/32

21/32

1

3/16

3M1515T-F

1F

15

0.564

0.534

11/16

11/16

21/32

1

3/16

3M1516T-F

2F

16

0.602

0.572

23/32

13/32

49/64

1

1/4

3M1518T-F

2F

18

0.677

0.647

49/64

7/16

49/64

1

1/4

3M1520T-F

2F

20

0.752

0.722

29/32

17/32

49/64

1

1/4

3M1521T-F

2F

21

0.789

0.759

63/64

9/16

49/64

1

1/4

3M1522T-F

2F

22

0.827

0.797

63/64

9/16

49/64

1

1/4

3M1524T-F

2F

24

0.902

0.872

63/64

9/16

49/64

1

1/4

3M1526T-F

2F

26

0.978

0.948

13/32

11/16

49/64

1

1/4

3M1528T-F

2F

28

1.053

1.023

1 1/4

11/16

49/64

1

1/4

3M1530T-F

2F

30

1.124

1.098

1 1/4

25/32

49/64

1

1/4

3M1532T-F

2F

32

1.203

1.173

1  7/16

7/8

49/64

1

1/4

3M1536T-F

2F

36

1.353

1.324

1 1/2

1  1/32

25/32

13/16

1/4

3M1540T-F

2F

40

1.504

1.474

1 11/16

1  3/32

25/32

13/16

1/4

3M1544T-F

2F

44

1.654

1.624

1 7/8

1  9/32

25/32

13/16

1/4

3M1548T

2

48

1.805

1.775

-

1  9/32

25/32

13/16

3/8

3M1560T

2

60

2.256

2.226

-

1  9/32

25/32

13/16

3/8

3M1572T

2

72

2.707

2.677

-

1  9/32

25/32

13/16

3/8
